Atlas F1 - The Arrows Page

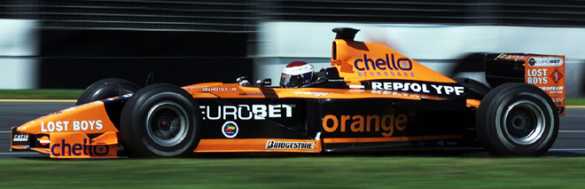

The A21 Car Specifications

The A21

Primary sponsors

  • Orange
  • chello
  • Eurobet

    Chassis: Carbon monocoque with Kevlar crash resistant sides

    Front and Rear Suspension: Inboard operated independent suspension; carbon fibre wishbones with FIA tether restraint system

    Brakes: Single 6 pot calipers front and rear

    Transmission: Arrows/Xtral 6-speed semi-automatic, in-line configuration

    Electronics: Arrows/PI Sigma

    Wheels: One piece Magnesium 13 x 12 front, 13 x 13.7 rear

    Length: 4430 mm

    Width: 1798 mm

    Height: 1000 mm

    Front Track: 1465 mm

    Rear Track: 1410 mm

    Wheelbase: 2995 mm

    Weight: 600 kg including driver and camera(s) or ballast


    Engine Specification - Supertec FB02

    Number of Cylinders: 10

    Configuration: 71 degree vee

    Cylinder Block: Aluminium

    Crankshaft: Steel

    Camshaft Drive: Gears

    Number of Valves: 40

    Ignition System: Magneti Marelli

    Injection: Magneti Marelli

    Oil System: Dry sump

    Weight: 118 kilograms, ECU and electrical equipment included

    Length: 623 mm

    Width: 517 mm

    Height: 393 mm (without airbox)


    The Drivers

    Click on the thumbnail to view the image in full size

    Pedro de la Rosa
    see bio

    Jos Verstappen
    see bio

    Test driver: Mark Webber


    Team Milestones

    1977: Arrows Racing Team founded, based in Milton Keynes, UK

    1978: F1 debut at the Brazilian GP; Team finishes 9th in the Constructors' Championship with Riccardo Patrese and Rolf Stommelen

    1979: Team finishes 9th in the Constructors' Championship with Riccardo Patrese and Jochen Mass

    1980: Team finishes 9th in the Constructors' Championship with Riccardo Patrese and Jochen Mass

    1981: Team finishes 8th in the Constructors' Championship with Riccardo Patrese, Siegfried Stohr and Jacques Villeneuve

    1982: Team finishes 10th in the Constructors' Championship with Marc Surer and Mauro Baldi

    1983: Team finishes 10th in the Constructors' Championship with Marc Surer, Chico Serra, Alan Jones and Thierry Boutsen

    1984: Team finishes 9th in the Constructors' Championship with Marc Surer and Thierry Boutsen

    1985: Team finishes 8th in the Constructors' Championship with Thierry Boutsen and Gerhard Berger

    1986: Designer Dave Wass left Arrows, replaced by Ross Brawn; Team finishes 10th in the Constructors' Championship with Thierry Boutsen, Marc Surer and Christian Danner

    1987: BMW, supplier of the powerplant of the Arrows car, pulls out of F1 but USF&G-owned Megatron buys the rights to the engine; Team finishes 6th in the Constructors' Championship with Derek Warwick and Eddie Cheever

    1988: Team finishes 4th in the Constructors' Championship with Derek Warwick and Eddie Cheever; Derek Warwick finishes 7th in the Drivers' Championship

    1989: Arrows F1 Technical Centre opened at Milton Keynes; in November the team is bought by Wataru Ohashi’s Footwork Corp.; Team finishes 7th in the Constructors' Championship with Derek Warwick and Eddie Cheever

    1990: Ross Brawn replaced by James Robinson; Alan Jenkins appointed Technical Director; Team finishes 9th in the Constructors' Championship with Michele Alboreto and Alex Caffi

    1991: In June, Ford Cosworth V8 replaces Porsche engine with which the team started the season with; The 0.4 scale wind tunnel opens at Arrows Technical Centre; Team finishes 9th in the Constructors' Championship with Michele Alboreto and Alex Caffi

    1992: Team finishes 7th in the Constructors' Championship with Michele Alboreto and Aguri Suzuki

    1993: Team finishes 9th in the Constructors' Championship with Derek Warwick and Aguri Suzuki

    1994: Previous owners Jackie Oliver and Alan Rees take over the running of the team under its former name of Arrows Grand Prix International Limited; Team finishes 9th in the Constructors' Championship with Christian Fittipaldi and Gianni Morbidelli

    1995: Jackie Oliver and Alan Rees regained ownership of the team with no further involvement from Footwork other than the designation of the chassis; Team finishes 8th in the Constructors' Championship with Gianni Morbidelli, Taki Inoue and Max Papis

    1996: TWR Group takes control of Arrows team and moves to TWR Group Headquarters in Leafield, Oxon; Team finishes 9th in the Constructors' Championship with Ricardo Rosset and Jos Verstappen

    1997: In May, John Barnard appointed Technical Director; Team finishes 8th in the Constructors' Championship with Damon Hill and Pedro Diniz

    1998: Consortium of Morgan Grenfell Private Equity, Prince Malik Ado Ibrahim and Tom Walkinshaw restructure ownership of Arrows Grand Prix; Team finishes 7th in the Constructors' Championship with Pedro Diniz and Mika Salo

    1999: Roger Silman appointed Managing Director and Mike Coughlan appointed Technical Director; Team finishes 9th in the Constructors' Championship with Pedro De La Rosa and Toranosuke Takagi
